Product Description – English

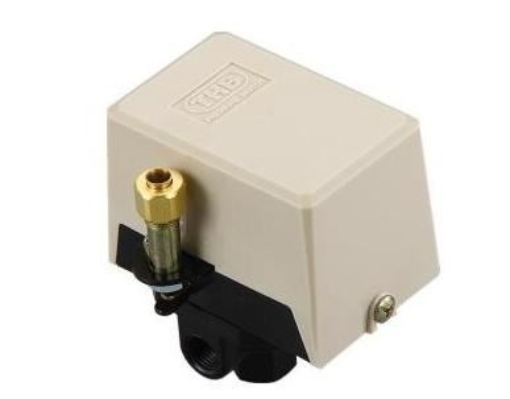

THB Pressure Switch for Air Compressor – Multiport, E20-A0
Expert Overview:
The THB Pressure Switch E20-A0 is a high-performance, multiport pressure switch engineered specifically for air compressors. Designed to deliver reliability and precise control, it supports industrial and heavy-duty applications, ensuring optimal compressor operation with safety and efficiency. The E20-A0 model features robust construction and versatile connectivity, making it an essential component for pressure management systems.
FEATURES:
- Wide Operating Range: Adjustable cut-in (Min ON) pressure from 40 PSI up to a maximum cut-out (Max OFF) pressure of 180 PSI, offering flexibility for various application requirements.
- Adjustable Differential: Supports a differential range of 30~40 PSI, enabling customized system pressure settings.
- Multi-Port Design: Equipped with four 1/4" female ports for easy and versatile installation in diverse compressor systems.
- Heavy Duty Capacity: Rated for 20A at 125V AC and 15A at 250V AC, providing high current capacity and dependable switching.
- Factory Calibrated: Delivered with a factory setting of 85-115 PSI, ensuring optimal performance out-of-the-box while allowing further adjustments as needed.
- Reliable Contact Configuration: Normally Closed (NC) contact arrangement enhances operational safety and control during compressor start/stop cycles.
- Durable Construction: Manufactured for long service life and dependable operation in demanding environments.
SPECIFICATIONS:
| MODEL | Min ON (Cut-In) PSI | Max Off (Cut-Out) PSI | Differential PSI | Factory Setting PSI | Electrical Rating (125V/AC) | Electrical Rating (250V/AC) | Pipe Fittings | Contact Arrangement | |---------|----------------------|-----------------------|------------------|---------------------|-----------------------------|----------------------------|-------------------------|---------------------| | E20-A0 | 40 | 180 | 30~40 | 85-115 | 20A | 15A | 1/4" Female (4 Ports) | NC |
Application Keywords:
Pressure Switch, Air Compressor, Multiport, Adjustable Differential, 1/4 Inch Ports, Industrial, Heavy Duty, Electrical Control, Normally Closed, Safety, Reliable, THB E20-A0.
Conclusion:
The THB Pressure Switch E20-A0 stands out as an expert solution for those seeking accuracy, safety, and endurance in air compressor pressure management. Its multiport configuration and superior electrical ratings make it the preferred choice for both industrial and commercial installations. Choose THB for uncompromised control and reliability.
