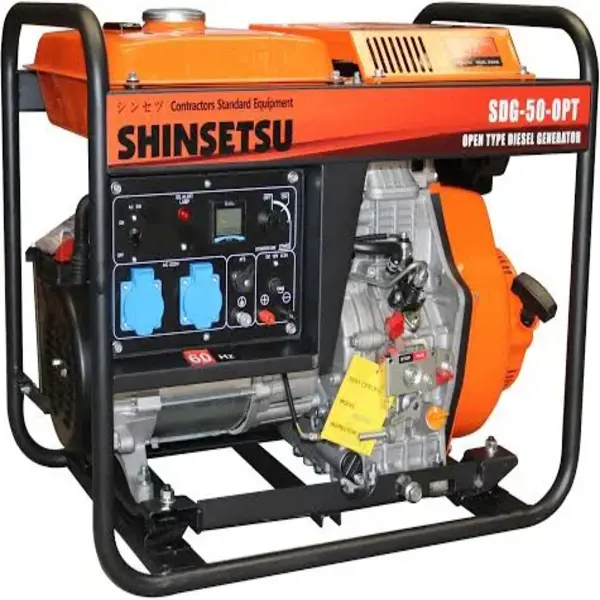

Shinsetsu Diesel Generator, SDG-50-OPT

Shinsetsu Diesel Generator, SDG-50-OPT

Specifications

Rated Output 5 kW

Noise 80 db from 7 m distance

Max Output 5.5 kW

Displacement 418 cc

Rated Power 8.6 hp / 3,600 rpm

Bore x Stroke 86 x 72 mm

Max Power 9 hp / 3,600 rpm

Compression Ratio 19:5:1

Rated Voltage 230 V

Fuel Capacity 14.5 L

Frequency 60 Hz

Lubrication Capacity 1.65 L

Rated Electric Current 26 A

Lubrication Type SAE 10 W 30

DC Output V 12 (8.3) A

Dimension 56.5 x 95 x 71 cm

Type Single Cylinder 4 Stroke

Weight 149 kg
