Brand Name : Powerman
SPECIFICATIONS:

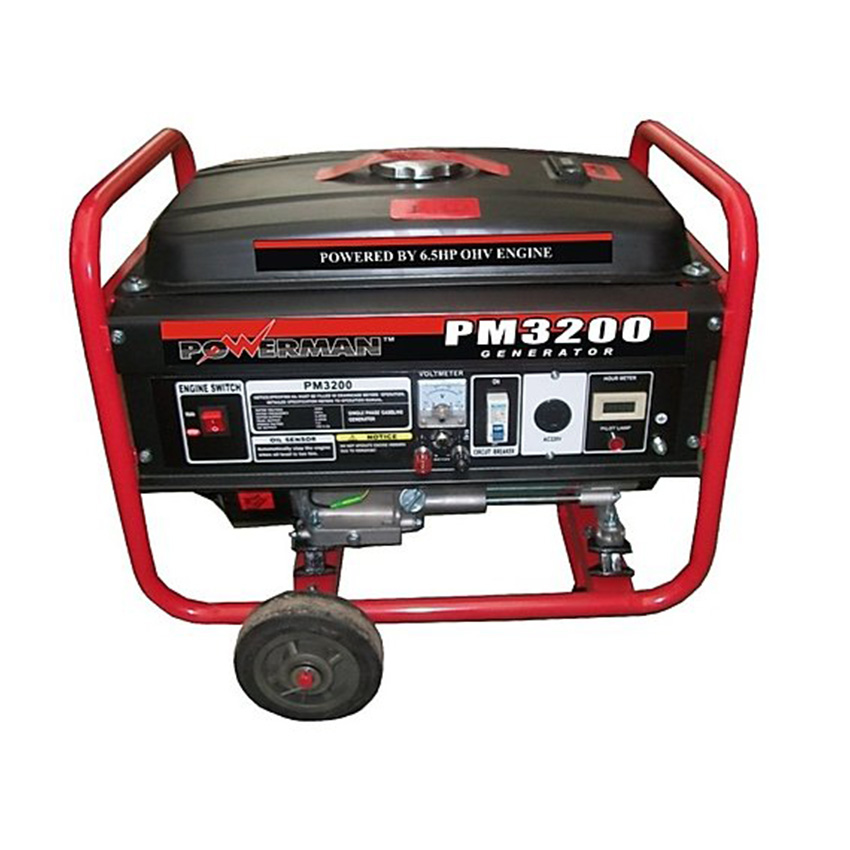

Model: PM3200/PM3200ES PM5300/PM5300ES PM6500/PM6500ES PM7600/PM7600ES
Voltage Regulate: AVR AVR AVR AVR
Frequency Hz: 60 60 60 60
Rated AC Voltage (V): 220 220 220 220
Rated AC Output (KVA): 2.5 4.4 5.6 6.5
Peak AC Output (KVA): 3.2 5.3 6.5 7.6
Power Factor: cosØ=1.0 cosØ=1.0 cosØ=1.0 cosØ=1.0
Bore x Stroke (mm/inch): 68x54/2.68x2.13 82x64/3.23x2.52 88x64/3.46x2.52 90x66/3.54x2.60
Displacement (ml): 196 337 389 420
Max. Output (HP/rpm): 6.5/3600 11.0/3600 13.0/3600 15.0/3600
Fuel: Unleaded Gasoline Unleaded Gasoline Unleaded Gasoline Unleaded Gasoline
Fuel Tank Capacity (L/gal): 15 25/6.6 25/6.6 25/6.6
Continuous Operating Hours (h): 11 10 9 8
Dimensions LxWxH (mm): 600 x 450 x 470 700 x 525 x 580 700 x 525 x 580 700 x 560 x 580
Net Weight (Kg/lbs): 48/105.6 73.5/161.7 82/180.4 96/209.5
