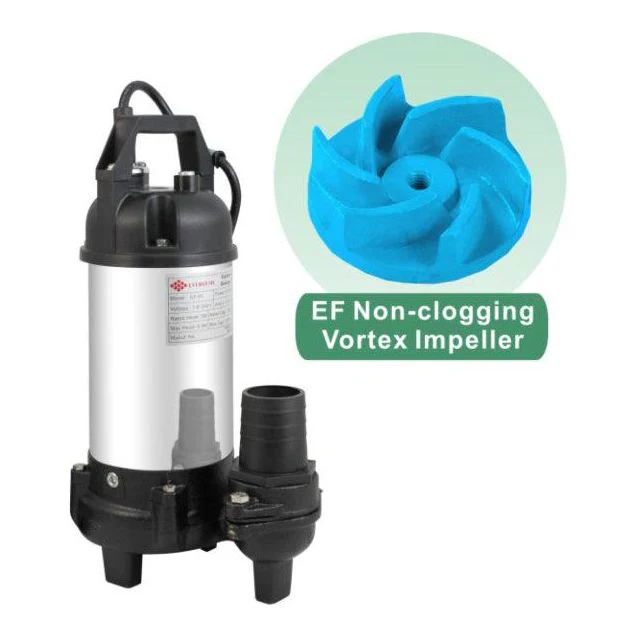

SUBMERSIBLE VORTEX SEWAGE PUMP

INDUSTRIAL SERIES SUBMERSIBLE VORTEX SEWAGE PUMP BY EVERGUSH MODEL EF-05 , EFLO-10 , EF-20 , EF-30, EF-30T ,- EF-50T , EF-75T , EF-100T , EF-150T MOTOR SPECS : 2P dry or oil type motor * Insulation : F Class Protection : Ip68
SKU: EF-05 , EFLO-10 , EF-20 , EF-30, EF-30T ,- EF-50T , EF-75T , EF-100T , EF-150T
*
Old price: ₱14,100.00
₱1.00
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Delivery date: 3-5 days

Industrial Series
Submersible Vortex Sewage Pump

Features

  • Non-clogging impeller minimizes abrasives wear and allows large solid passage.
  • Dry motor with overload protector; Cable with an epoxy resin sealed water-proof cable hood; Use deep groove C3 bearing to extend life time.
  • Superior abrasion resistant double mechanical seal to ensure best seal effect.
  • Oil seal mounted outside of seal chamber stops solids gathering around seal faces.

Applications

  • Waste water drainage from all industries
  • Sewage drainage from hotels, restaurants, schools, malls and public facilities.
  • Fishery, animal husbandry, stock farm, piggery, fecal sewage tank in waste water treatment plant.
  • Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.

Motor Specs:

  • 2P Dry or Oil type motor.
  • Insulation: F class.
  • Protection: IP68
Model EF-05 EF-10 EF-20 EF-30
Power 1/2 HP 1 HP 2 HP 3 HP
Phase 1⌀ 1⌀ 1⌀ 1⌀
Voltage 220V/60Hz
Current 3A 6A 12A 18A
Discharge dia. 50mm 50mm 80mm 80mm
Max Head 10m 13m 17m 20m
Max Capacity 280 l/min 345 l/min 630 l/min 700 l/min
Price 14,100.00 19,900.00 31,500.00 49,900.00



Model EF-30T EF-50T EF-75T EF-100T EF-150T
Power 3HP 5HP 7.5HP 10HP 15HP
Phase 3⌀ 3⌀ 3⌀ 3⌀ 3⌀
Voltage 220V/60Hz
Current 9.2A 14.8A 22A 29.3A 36.26A
Discharge dia. 80mm 80mm 80mm 100mm 100mm
Max Head 20m 22m 22m 36m 38m
Max Capacity 700 l/min 1100 l/min 1100 l/min 1600 l/min 1900 l/min
Price 37,000.00 57,500.00 79,000.00 110,000.00 176,800.00
