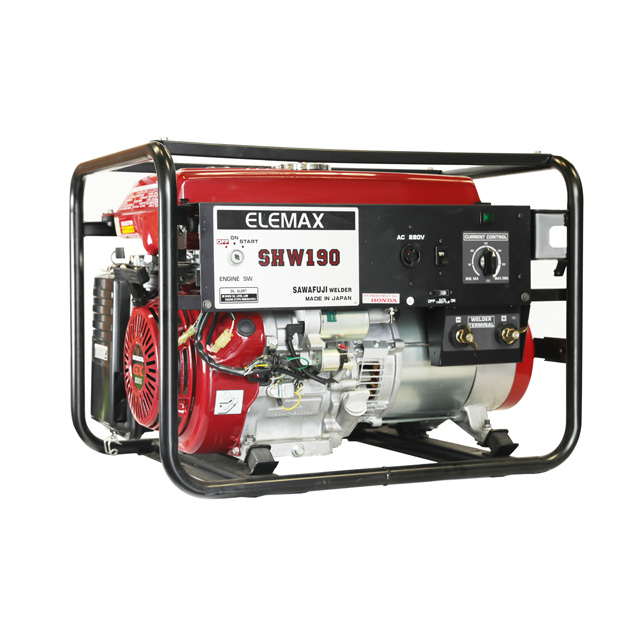

ELEMAX Welder Generator - SHW190

Be the first to review this product

Welder Generator

₱152,600.00

Manufacturer: Elemax

SKU: SHW190

Vendor: Screwking Hardware Corp.

Choose Variation: *

a change or difference in condition, amount, or level, typically with certain limits

SHW190-SA [+₱152,600.00]
SHW190-SAS [+₱176,200.00]

Qty:

+ -

Overview
Reviews
Contact Us

FEATURES

-Honda OHV 4-stroke Engine

-190amps Maximum DC Power for Welding

-17 liter Large Capacity Fuel Tank with Fuel Gauge

-Compact and Light Weight

-Stable-Arc 6-Phase Half Wave Current for Welding

Model				SHW190
Type				R	S	L
Generator	Frequency (Hz)			50	60
	Type			2-pole, Field Rotating Type
	Phase			Single
	AC Output	Rated Power (KVA)	50Hz	2.0	-	-
			60Hz	-	3.0	4.0
		Rated Voltage (V)		220		110
	Rated Power Factor (cosφ)			1.0
Welder(DC)	Type			2-pole, Field Rotating Type
	Rectifier Type			Six Phase Half Wave Rectifier
	Rated Output		3,600rpm	140A 26V
	Current Control Range (A)			50 - 190
	Rated Duty Cycle (%)			50
	Welding Rod			2.6 to 5.0 mm dia.
Engine	Maker			HONDA
	Model			GX390
	Displacement (CC)			389
	Net Power (kW)		3,600rpm	13
	Ignition System			Transistor
	Oil Alert System			YES
	Starting System			Recoil (OP;Electric)
Others	L x W x H (mm)			679 x 511 x 490
	Dry Weight (kg)			88
	Fuel Tank Capacity (liters)			17
	Sound Level [dB(A)/7m]		50Hz	73
			60Hz	75
	Continuous Operating Hours (hr)		50Hz	6.2
			60Hz	5.2
