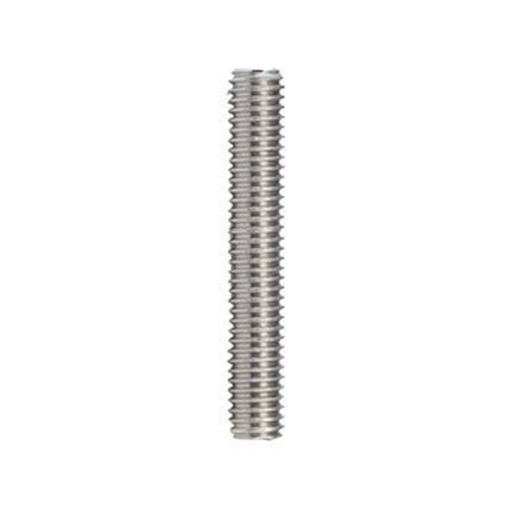

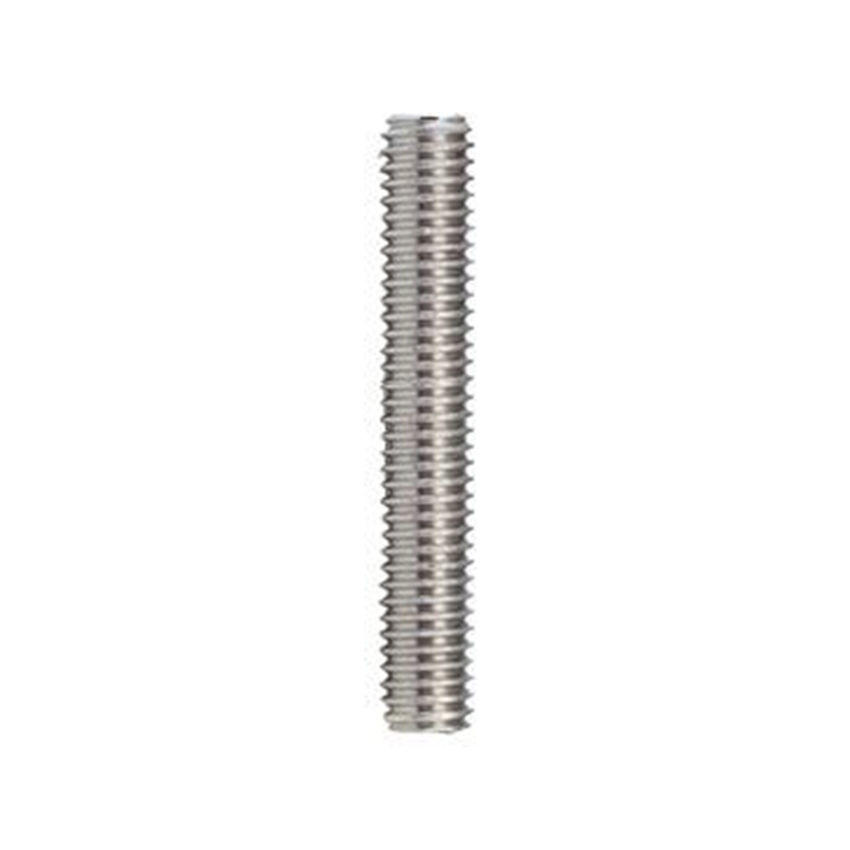

FEATURES: Stud bolt, nuts, machine bolts and washers are also known as bolting material or fastener. Bolting is the term that used to tighten / create the flange joints connection.
SPECIFICATIONS:
DESIGN
TEMP. |
FLANGES |
GRADE
THREAD RODS |
GRADE
NUTS |
| -195° to 102°C |
ASTM A182
Gr. F304, F304L, F316,
F316L, F321, F347 |
A320 Gr.B8 Class2 |
A194 Gr.8A |
| -101° to -47°C |
ASTM A350
Gr.LF3 |
A320 Gr.L7 |
A194 Gr.7 |
| -46° to -30°C |
ASTM A350
Gr.LF2 |
A320 Gr.L7 |
A194 Gr.7 |
| -29° to 427°C |
ASTM A105 |
A193 Gr.B7 |
A194 Gr.2H |
| 428° to 537°C |
ASTM A182
Gr.F11, F22 |
A193 Gr.B16 |
A194 Gr.2H |
| 538° to 648°C |
ASTM A182
Gr.F11, F22 |
A193 Gr.B8 Class1 |
A194 Gr.8A |
| 649° to 815°C |
ASTM A182
Gr. F304H, F316H |
A193 Gr.B8 Class1 |
A194 Gr.8A |
DESIGN
TEMP. |
FLG'S |
GRADE
THREAD RODS |
GRADE
NUTS |
